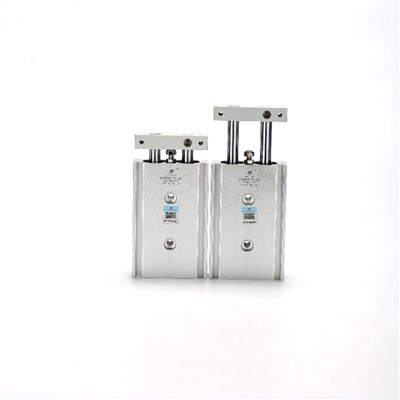

Double Rod Type Dual Rod Cylinder



1. Superior Lateral Load Stability Without External Guides

The built-in dual piston rod guiding structure reinforces anti-torsion and anti-deflection performance. Unlike ordinary cylinders that rely on external slide rails, the STM slide pneumatic cylinder achieves high rigidity and stable positioning independently, avoiding positioning deviation caused by loose guide installation or long-term wear.

2. Dual Mounting Styles for Flexible Installation

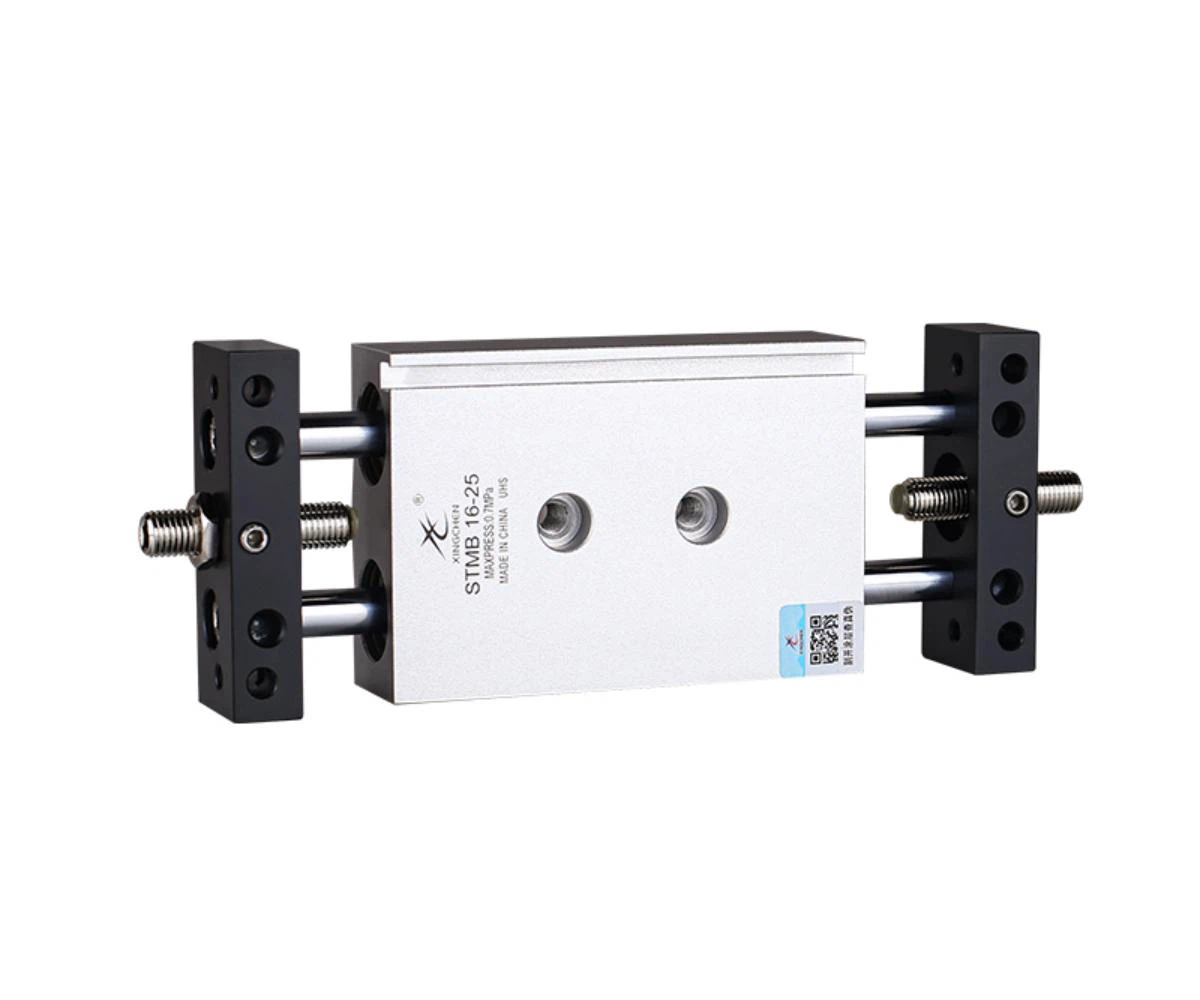

This compact slide cylinder supports two practical mounting configurations to match different mechanical designs. The STMB type features a fixed cylinder body with a moving slide platform, while the STMS type adopts a fixed slide structure with a movable cylinder body. Both styles greatly improve layout flexibility for automated machinery.

3. Customizable Cushioning for Smooth Operation

Standard STM pneumatic slide cylinders come with durable rubber bumpers for conventional low-speed and light-load scenarios. For high-speed cycling or heavy-load applications that require reduced end-stroke impact, the optional hydraulic cushion effectively decelerates the platform, lowers mechanical vibration, and extends equipment service life.

4. High-Temperature Resistant Custom Option

Custom high-temperature configurations allow the STM dual rod slide cylinder to operate steadily in harsh environments up to 150°C. Specialized sealing materials and structural upgrades replace standard components to adapt to continuous high-temperature working conditions.

5. Precise Position Feedback for Automatic Control

Compatible with DMSG, CMSG, and EMSG magnetic sensors, the STM slide pneumatic cylinder supports real-time position signal output, seamless connection with PLC systems, and highly repeatable automated cycle control.





Specification	Details
Product Series	STM
Product Type	Dual piston rod slide pneumatic cylinder
Bore Size	Ø10 / Ø16 / Ø20 / Ø25 mm
Action Type	Double acting
Working Medium	Clean compressed air
Operating Pressure	0.1–0.9 MPa
Proof Pressure	1.35 MPa
Standard Temperature Range	-20°C to 70℃
High-Temperature Configuration	Up to 150℃
Operating Speed Range	30–500 mm/s
Stroke Tolerance	0~+1.0 mm
Cushion Type	No cushion / rubber bumper / optional hydraulic cushion
Mounting Type	STMB (body-fixed) / STMS (slide-fixed )
Port Size	M5×0.8 / PT1/8
Compatible Magnetic Switch	DMSG, CMSG, EMSG
Rotation Accuracy	±0.05° / ±0.1° (depends on bore size and mounting method )





Bore Size	Standard Strokes (mm)	Max Standard Stroke	Permissible Stroke
Ø10 mm	25 / 50 / 75 / 100	100 mm	150 mm
Ø16 mm	25 / 50 / 75 / 100 / 125 / 175 / 200	200 mm	250 mm
Ø20 mm	25 / 50 / 75 / 100 / 125 / 175 / 200 / 250	250 mm	300 mm
Ø25 mm	25 / 50 / 75 / 100 / 125 / 175 / 200 / 250	250 mm	300 mm

Note: 1. Within the permissible stroke range, strokes exceeding the maximum stroke are treated as non-standard specifications; please contact the company regarding other special stroke requirements.





The following data is theoretical thrust under standard pressure. Actual output force varies with working pressure, load weight, operating speed, installation conditions, and cushion configuration.

Bore	Rod Diameter	Effective Area	0.3 MPa	0.5 MPa	0.7 MPa
Ø10 mm	Ø6 mm	100.5 mm²	30.2 N	50.3 N	70.4 N
Ø16 mm	Ø8 mm	301.6 mm²	90.5 N	150.8 N	211.1 N
Ø20 mm	Ø10 mm	471.2 mm²	141.4 N	235.6 N	329.9 N
Ø25 mm	Ø12 mm	755.6 mm²	226.7 N	377.8 N	528.9 N





The STM slide pneumatic cylinder is widely adopted in precision automation scenarios that require stable linear positioning and repeated pushing motion:

• Industrial automation: Automatic feeding, workpiece positioning, material pushing, sorting, and handling systems

• Pick-and-place equipment: Component transfer, loading and unloading, and precision workpiece displacement

• Packaging machinery: Product positioning, feeding, stopping, and packaging auxiliary mechanisms
• Electronics precision assembly: Compact-space automated assembly, inspection fixtures, and micro-positioning equipment





• Bore size: Select according to actual load weight and required thrust; larger bore sizes provide stronger output force under the same working pressure
• Stroke length: Choose standard stroke specifications based on mechanical travel requirements; confirm standard/maximum/permissible stroke limits before ordering
• Mounting type: Select STMB for fixed cylinder body installation; choose STMS for fixed slide platform installation
• Cushion configuration: Rubber bumpers suit low-speed and light-load operation; upgrade to hydraulic cushion for high-speed cycling and heavy-load working conditions
• Position sensing: Equip DMSG, CMSG, or EMSG magnetic switches if automatic position feedback and PLC linkage are required
• High-temperature working: Custom high-temperature versions are required for environments above 70°C to ensure sealing stability and service life



Q1: What is the difference between STMB and STMS?

A1: STMB refers to body-fixed mounting where the slide platform moves independently. STMS adopts slide-fixed mounting where the cylinder body moves back and forth. Users can select the type according to mechanical fixing requirements.



Q2: Can the STM slide cylinder bear lateral loads?

A2: Yes. The symmetrical dual-piston-rod structure greatly improves anti-torsion and anti-deflection capacity compared with single-rod cylinders. Actual allowable lateral load depends on bore size, installation method, and load direction.



Q3: Is hydraulic cushion optional?

A3: Yes. Standard models use rubber bumpers. Hydraulic cushioning is optional to reduce end-stroke impact, suppress vibration, and adapt to high-speed and heavy-load cycles.



Q4: Does STM support high-temperature working conditions?

A4: Custom high-temperature configurations support continuous operation up to 150°C, adopting special heat-resistant seals and materials different from standard models.



Q5: Can magnetic sensors be installed for automatic control?

A5: Yes. The STM slide pneumatic cylinder reserves installation positions for DMSG, CMSG, and EMSG magnetic switches, realizing real-time position detection and automated system linkage.
